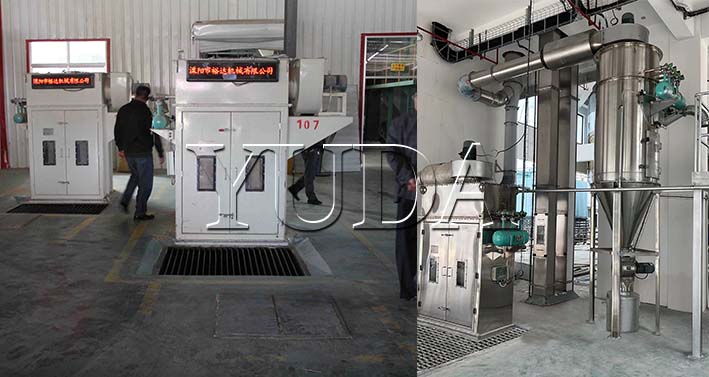

TBLMf type pulse dust collector is the digestion and absorption project of feed equipment of Mineistry of Commerce. This machine is developed mainly based on the Italian FCQ type dust filters, it using foreign advanced cylindrical cloth bag and box structure, designed with unique injection device, with compact structure, small floor area, high dust removal efficiency and other features. The machine is used on single or centralized air suction dust removal and dust removal in pneumatic conveying in food and feed industry, and is also used on dust recovery and filtration in other industries. Picture 1 shows examples of the application of the machine in several occasions.
1. Outer square, inner circle.Reasonable design.
2. One solenoid valve can control multiple cloth bags.
3. High dust removal efficiency, multi-function selection of dust removal cloth bag: ultra-fine, temperature-resistant, resistantWet, antistatic, etc.

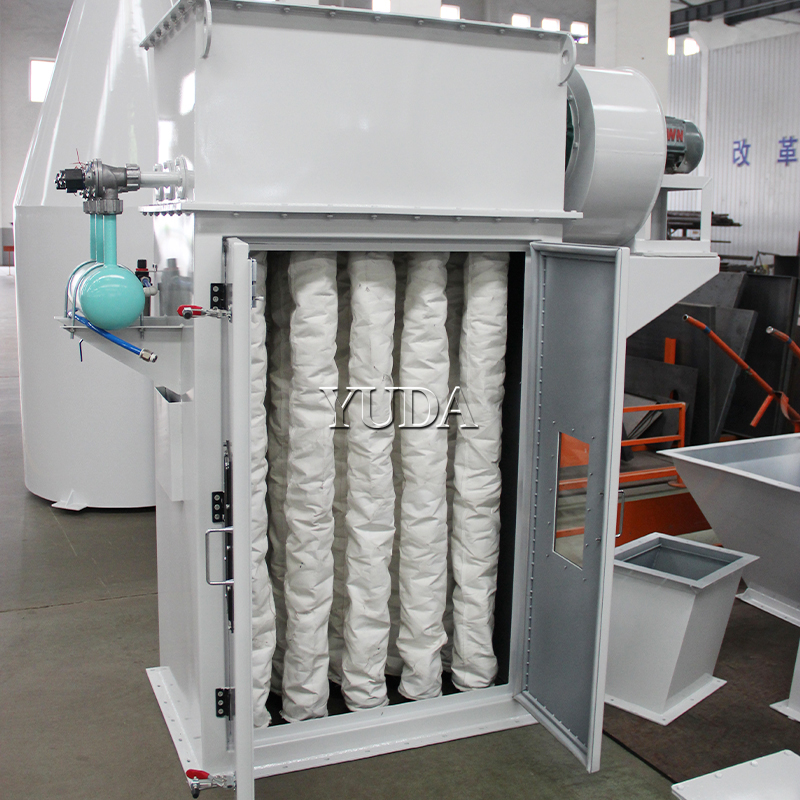

4. "Super large double-opening inspection door" design, humane, convenient for maintenance and replacement.
5. "Quick screw chuck pulse dust collector filter bag" patented technology. Patent number: 201220476587.X

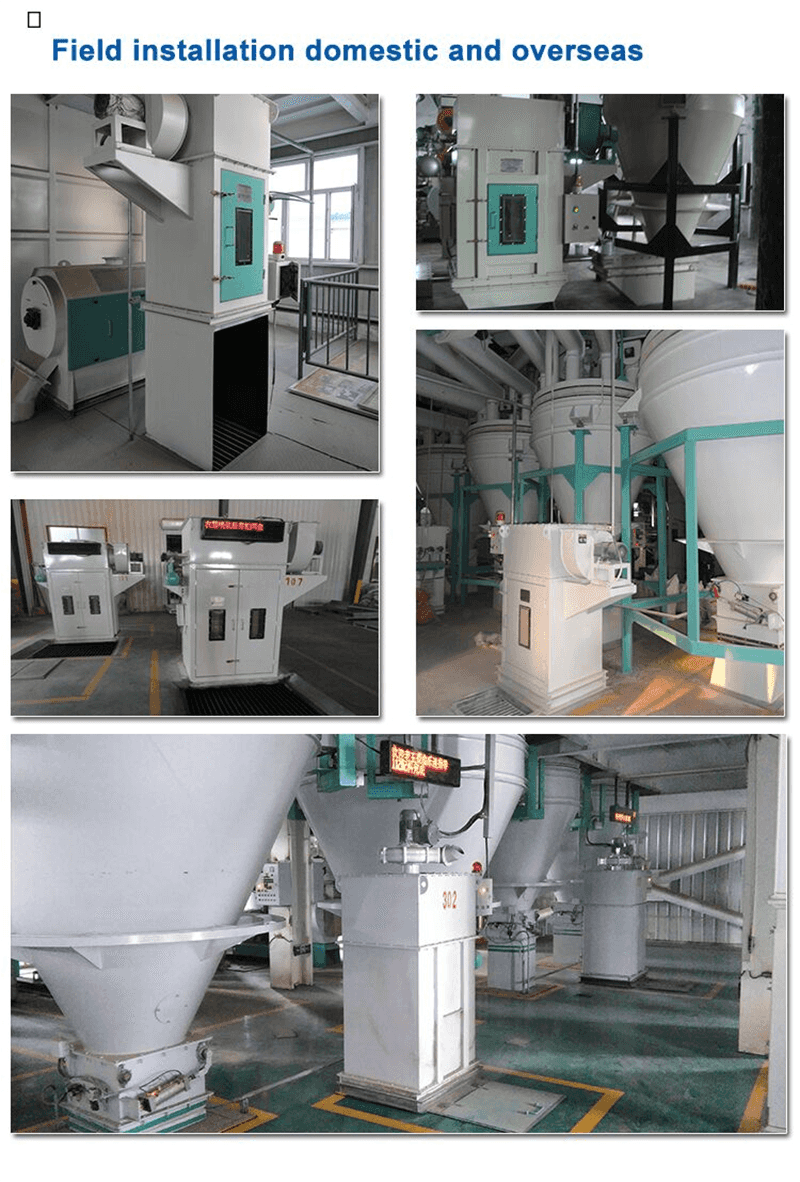

Practical Application
|
Spec. / |
Filtering Area （m2） |
Treating Air Flow （m3/h） |
Spec. / |
Filtering Area （m2） |
Treating Air Flow （m3/h） |
|
TBLMF—4 |
1.6/2.5/3.3 |
290～600 |
TBLMF—28 |
11.5/17.1/23 |
2000～4100 |
|
TBLMF—6 |
2.5/3.7/5 |
450～900 |
TBLMF—36 |
14.8/22/29.6 |
2600～5300 |
|
TBLMF—9 |
3.7/5.5/7.4 |
660～1300 |
TBLMF—40 |
16.3/24.5/32.7 |
2900～5900 |
|
TBLMF—12 |
5/7.3/9.9 |
900～1800 |
TBLMF—42 |
17.1/25.7/34.3 |
3000～6100 |
|
TBLMF—15 |
6.2/9.2/12.3 |
1100～2100 |
TBLMF—48 |
19.7/29.3/39.4 |
3500～7000 |
|
TBLMF—18 |
7.4/11/14.8 |
1300～2600 |
TBLMF—56 |
23/34.2/46 |
4100～8300 |
|
TBLMF—21 |
8.6/12.8/17.2 |
1500～3100 |
TBLMF—64 |
26.1/39.2/52.2 |
4700～9400 |
|
TBLMF—24 |
9.9/14.7/19.7 |
1700～3500 |
TBLMF—72 |
29.4/44.1/58.8 |
5300～11000 |
|
TBLMF—80 |
32.7/49/65 |
5800～11700 |
TBLMF—90 |
36.7/55.1/73.5 |
6600～13500 |
|
TBLMF—104 |
42.5/63.7/84.9 |
7600～15200 |
TBLMF—120 |
49/73.5/98 |
8800~17600 |
Liyang Yuda Machinery Co.,Ltd is China TBLMf Pulse Dust Collector Manufacturers and TBLMf Pulse Dust Collector Company . The company has introduced a complete set of world-class technology CNC laser cutting machines, automatic profile sandblasting equipment, automatic welding machines, large-scale shearing and bending equipment, CNC lathes, etc. Undertake various types and scales of complete turnkey projects for feed, including complete plant planning, design, equipment manufacturing, installation and commissioning, and personnel training.
Technology and quality are the life of YUDA; the company adheres to the business philosophy of "honesty and quality", strict quality control, relying on strong scientific research, "integrity, pragmatism, pioneering and innovative". "Intelligent" manufacturing is in a leading position in the domestic and foreign industries.
